SupportFlagship

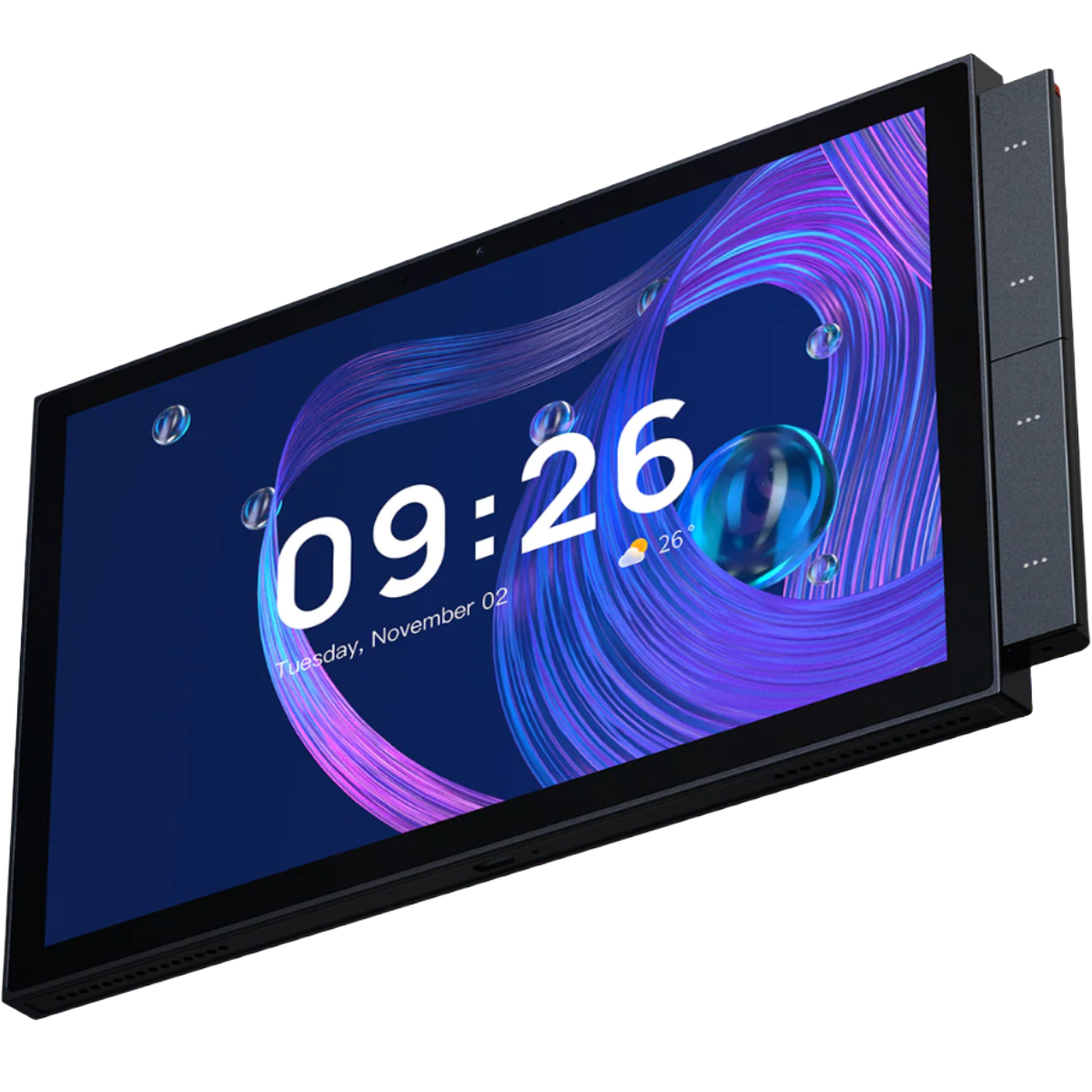

ArcLED Max
One panel for the whole connected home. Touch, talk, see, control – the flagship of the Smart Touch range.
The Flagship Command Surface

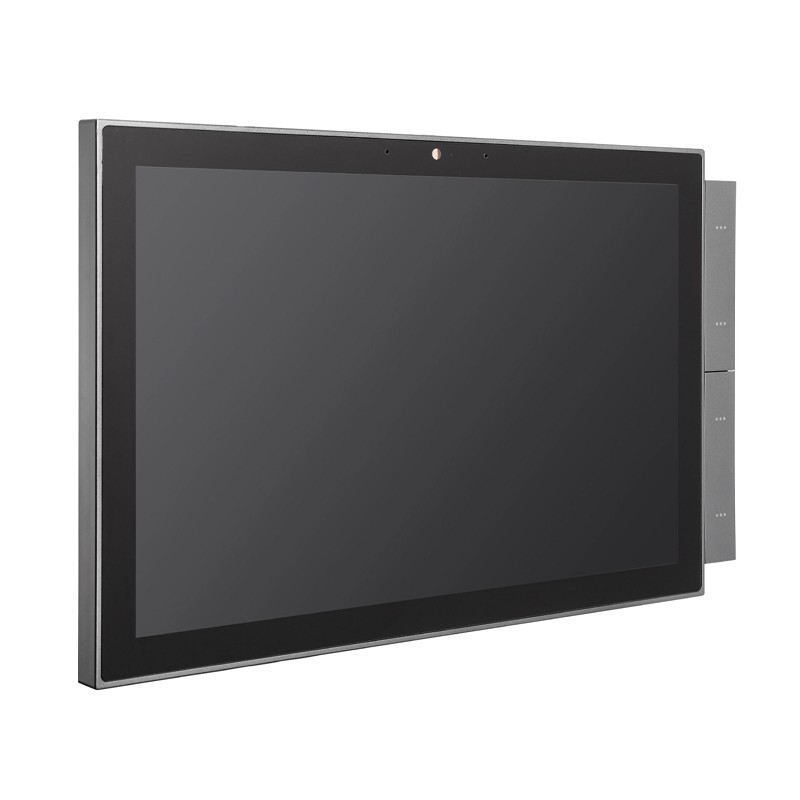

Where the 4-inch and 8-inch panels replace a single light switch, the 10.1-inch Max replaces the wall. It is the central nervous system of a connected home or commercial space – the panel everything else talks to.
See · Hear · Answer
The door, at your fingertips.
A built-in camera pairs with Tuya IP cameras and doorbells for two-way video calls. Standard SIP support means the panel slots into existing building intercom systems like DNAKE – so a luxury apartment, a hotel suite or an office entrance can all run through one wall-mounted unit.
Spotify · Alexa · Speaker
Spotify, Alexa and audio – in one panel.
Built-in Spotify means the Max isn’t just a control surface, it’s an entertainment endpoint. Stream music straight to the panel’s amplified speaker, ask Alexa to skip the track, or use it as the audio terminus for an intercom call. No external speaker, no separate Echo – it’s all in the panel.
Commercial Grade
Built to be installed once.

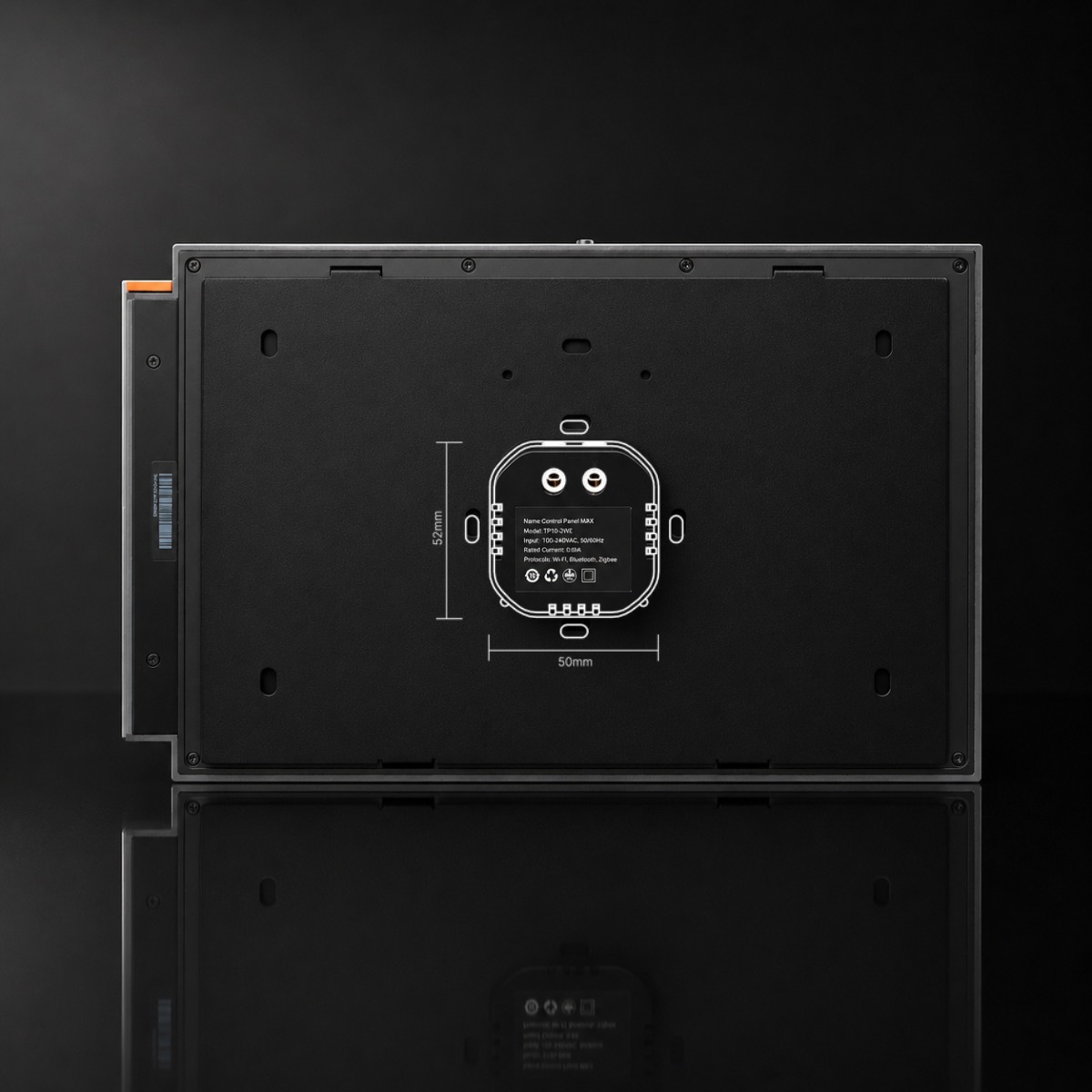

Beyond Wi-Fi, the Max offers wired Ethernet for installations that demand it, and an RS-485 interface for integration with commercial BMS, automation and AV systems. An integrated 2-way relay sits inside, ready to switch loads directly. This isn’t a consumer panel pretending to scale – it’s spec’d for it.
The Specification, Without Compromise
Every capability you’d expect from a flagship smart-home hub – and several you wouldn’t.
Multi-Mode Gateway
Wi-Fi, Bluetooth, ZigBee and Ethernet, all in one panel. Devices can be paired through whichever protocol they use, with no separate hub.
Android Operating System
A full Android OS underneath, not a locked-down firmware. Familiar, flexible and capable of running the rich Tuya control experience the panel deserves.
Wide-Range Power Input
Accepts 110-240V at 50/60Hz – the same panel works on UK, European or US installations without modification.
Alexa Built-in
Native Amazon Alexa runs on the panel itself – same skills, same Routines, same shopping list. Pair it with the built-in Spotify and the Max becomes a smart speaker with a screen.
Multi-Language Interface
The UI supports English alongside 15+ other languages, including French, German, Spanish, Italian, Polish and more. Useful for hotels and mixed-language households.
Three Ways to Control
Touch the screen, speak a command, or open the Smart Life app from anywhere. Choose what suits the moment – or share between the household.
Designed for
From luxury residential to high-spec commercial – the Max is the panel specifiers choose when “good enough” isn’t.
Luxury Homes
One control surface for lighting, climate, audio, security and entry – replacing the wall full of switches.
Hotels & Hospitality
Branded scenes, scheduled lighting and a multi-language interface make it equally at home in front-of-house and back-of-house.
Offices & Boardrooms
Meeting-room control with built-in video, audio and presence sensing. RS-485 for AV integration.
AV Installers
One panel that drops into existing BMS, AV and intercom infrastructure. Specifiable, installable, supportable.

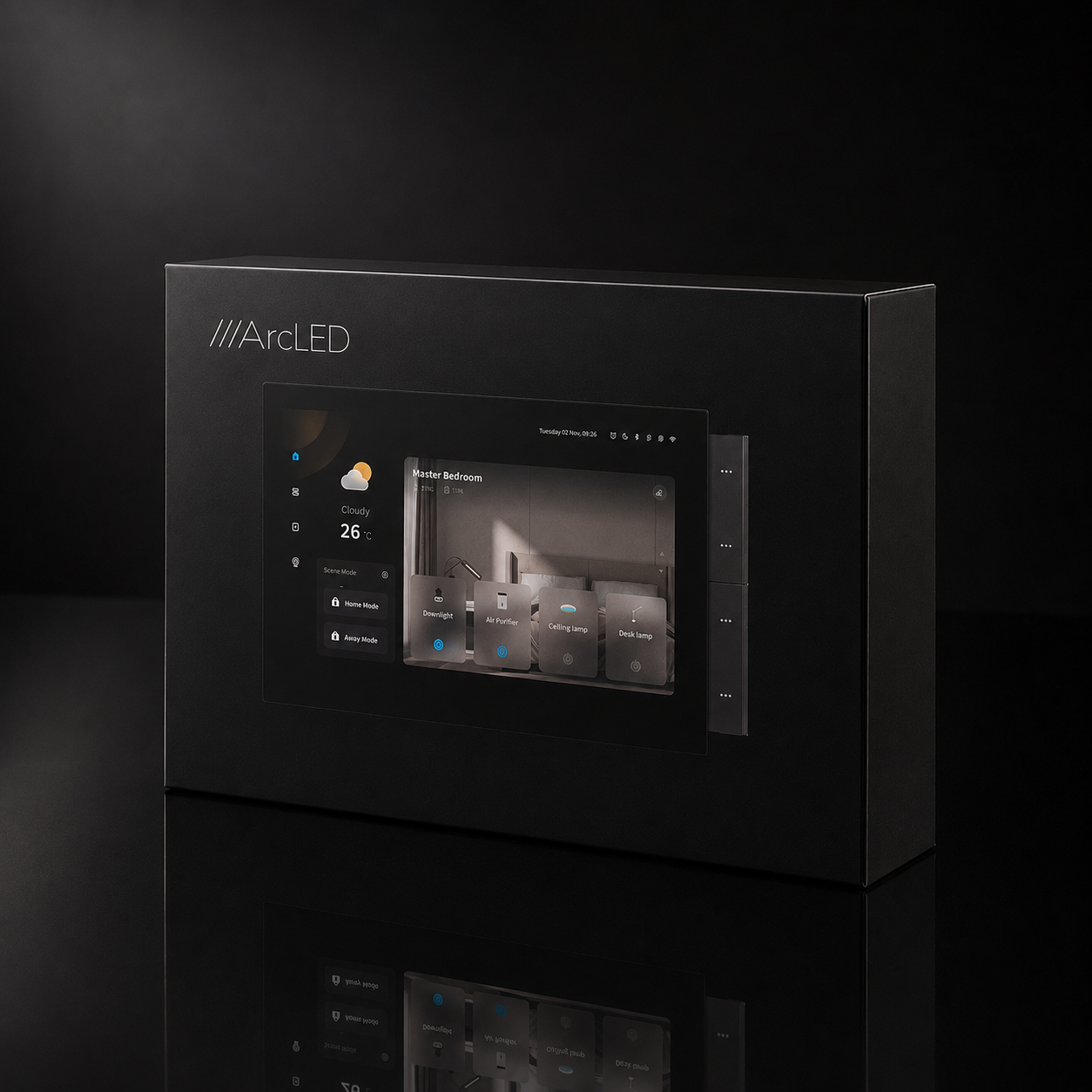

In the box.
- Smart central control screen MAX x 1
- Wall bracket x 1
- In-wall base box (optional) x 1
- Screw bag x 1
- Reset pin x 1
- Product manual x 1
Technical Specifications
The full datasheet, in one place.
| Product Code | ARC-TSTP-10 |
|---|---|
| Product Name | Control Panel MAX |
| Operating System | Android |

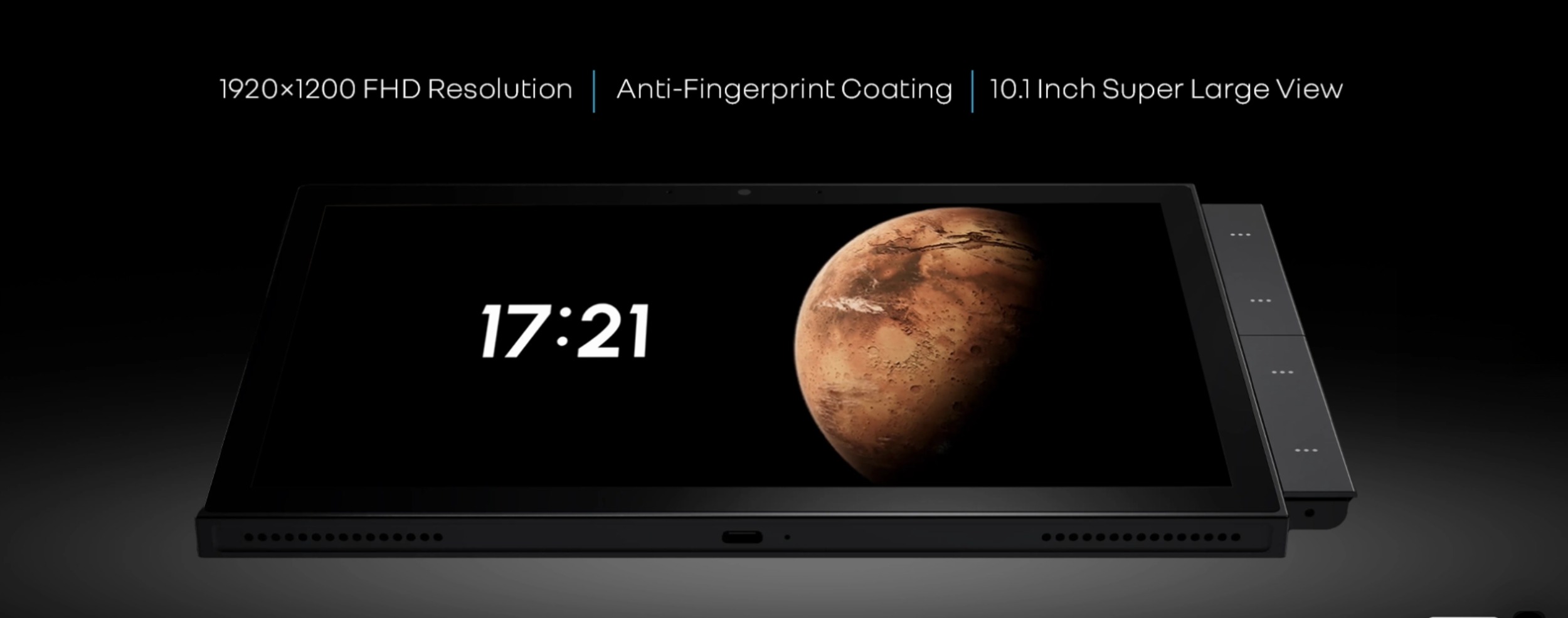

| Screen | 10.1 inch Liquid Retina HD |
| Camera | Built-in |
| Audio | Built-in speaker with audio amplifier |
| Voice Assistant | Built-in Amazon Alexa |
| Streaming | Built-in Spotify |
| Smart Gateway | Built-in ZigBee |
| Wireless Protocols | Wi-Fi, ZigBee, Bluetooth |
|---|---|
| Wired Interface | Ethernet port, RS-485 |
| Intercom | SIP (DNAKE compatible) |
| Relay | Integrated 2-way relay |
| Ecosystem | 30+ categories, 2700+ devices |
| Operation Modes | Touch, Voice, App |
| Power Input | 110-240V~, 50/60Hz (wide range) |
| Working Temperature | 0°C to +40°C |
