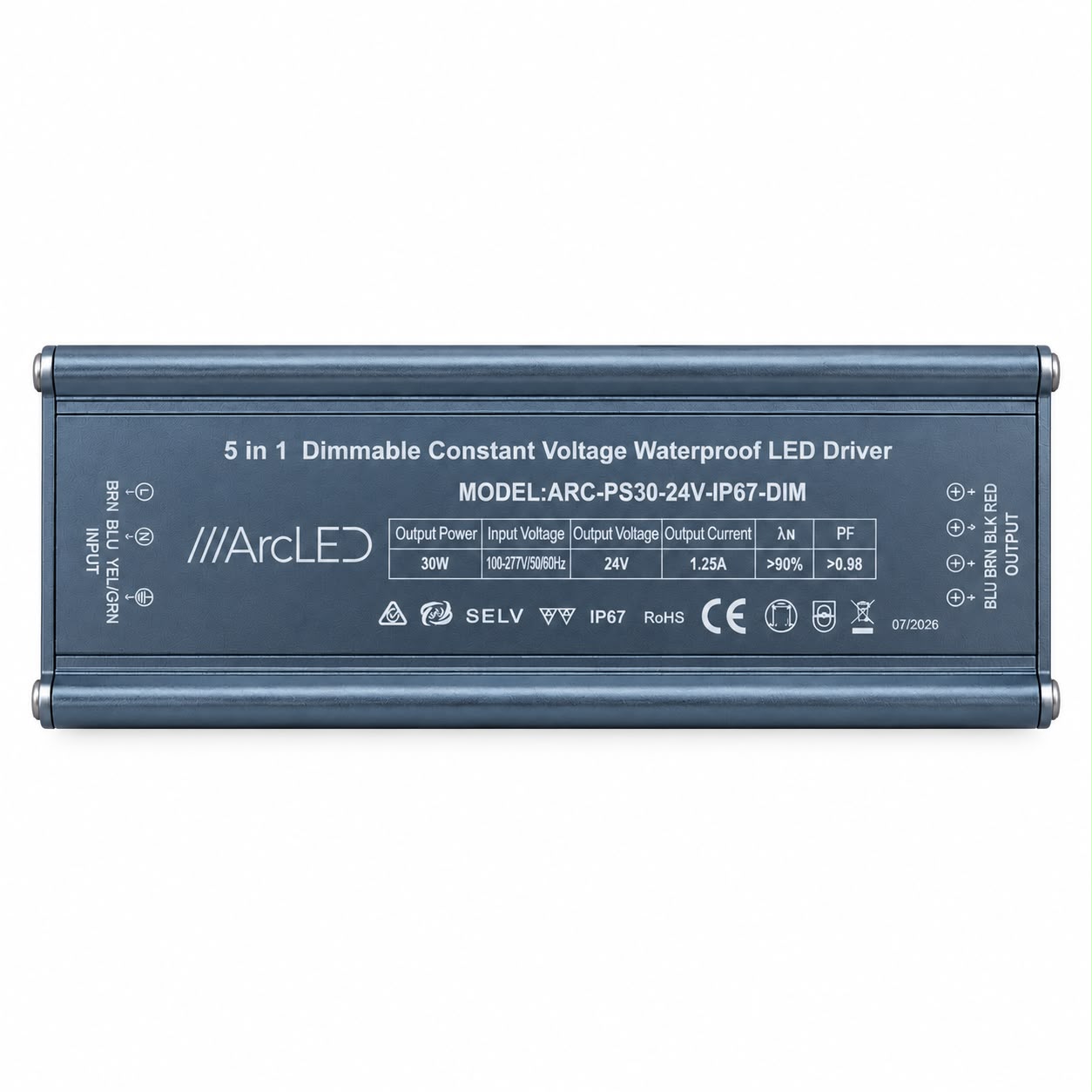

The ArcLED ARC-PS30-24V-IP67-DIM is a versatile 30W, 24V constant-voltage dimmable LED driver designed for professional indoor and outdoor LED lighting installations.
With a wide 100–277V AC input range and advanced 5-in-1 dimming, this driver offers excellent compatibility across a variety of lighting control systems. It supports TRIAC leading-edge and trailing-edge dimming, 0–10V, 1–10V, potentiometer and 10V PWM control, making it ideal for installations where reliable, smooth dimming is essential.
Its IP67-rated enclosure protects both indoor and outdoor applications, while integrated short-circuit, overload, over-voltage and over-temperature protection helps ensure dependable long-term operation.
Key Features
30W maximum output
24V DC constant-voltage output
1.25A maximum output current
Wide 100–277V AC input
5-in-1 dimming
TRIAC / phase-cut dimming
Compatible with leading-edge / forward-phase / MLV dimmers
Compatible with trailing-edge / reverse-phase / ELV dimmers
0–10V and 1–10V dimming
Potentiometer dimming
10V PWM dimming
High power factor: PF >0.95 at 240V AC
IP67 rated for indoor and outdoor use
Short-circuit, overload and over-voltage protection
Over-temperature protection
Natural convection cooling
CE, SAA, TUV and ETL approved
5-year warranty
Technical Specification
Specification Details
Model ARC-PS30-24V-IP67-DIM
Output Voltage 24V DC
Maximum Output Current 1.25A
Maximum Power 30W
Input Voltage 100–277V AC
Frequency 50/60Hz
Dimming TRIAC, 0–10V, 1–10V, Potentiometer, 10V PWM
Power Factor >0.98 @ 110V AC / >0.95 @ 240V AC
THD <15% @ 230V
Efficiency 84% @ 110V AC / 85% @ 230V AC
Standby Power <2W
IP Rating IP67
Working Temperature -25°C to +60°C
Storage Temperature -40°C to +85°C
Dimensions 150 × 44 × 32mm
Safety Standards IEC/EN 61347-1, IEC/EN 61347-2-13
Dimming Compatibility
The ARC-PS30-24V-IP67-DIM provides flexible control for a wide range of professional lighting applications. Phase-cut dimming supports both forward-phase / leading-edge and reverse-phase / trailing-edge dimmers, alongside 0–10V, 1–10V, potentiometer and 10V PWM control.
Important Compatibility Note
This dimming power supply is suitable for direct-drive LEDs only. It is not suitable for LED products containing an internal driver circuit or a capacitive load. Always confirm LED load compatibility before installation.
Applications
Ideal for 24V LED lighting installations, including architectural, commercial, retail, hospitality, display and outdoor lighting applications where a compact, weather-resistant and highly flexible dimmable power supply is required.
