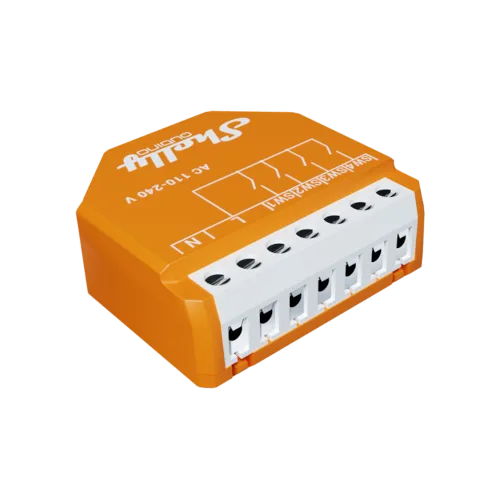

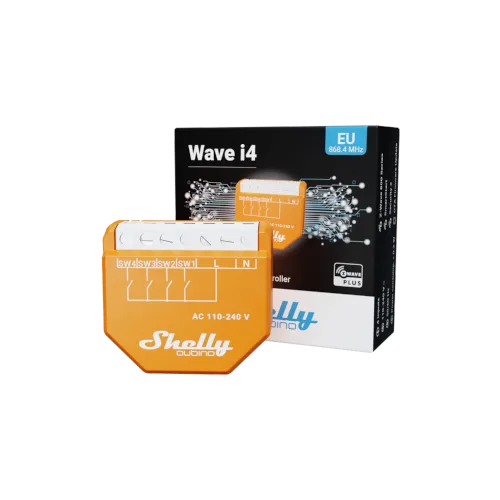

Shelly Qubino Wave i4 4-digital inputs controller for enhanced actions control​

Z-Wave 4-digital inputs controller for enhanced actions control​

The Shelly Qubino Wave i4 offers seamless control over your smart home by activating or deactivating scenes, running synchronized actions, and executing complex triggers. With its compact retrofit design, it fits behind any wall switch for easy installation.

Control up to 4 devices with one button press, and activate up to 12 scenes or actions, including short, long, and double presses. The Wave i4 allows direct communication between Z-Wave devices, triggering up to 8 actions without a gateway.

Shelly Qubino Wave i4 is an input reader device (it does not contain relays).​

(A gateway smart hub is required for configuration of this device – the gateway is not included with this product)

Features

• Multi-click activation  of up to 12 actions
• Extremely low power consumption < 0.2w
• Latest technology: Z-Wave 800 Series
• Automatic set-up with Smart Start
• Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
• Security 2 Authenticated for the highest level of security
• Ambient temperature-20°C to 40°C / -5°F to 105°F
• 4 Inputs
• Conductor stripped length5 to 6 mm / 0.20 to 0.24 in
• Screw terminals max. torque0.4 Nm / 3.5 lbin

Power

• Power supply AC110-240V 50/60Hz
• Power consumption< 0.2W
• Establish direct communication between devices your Z-Wave local network and set custom actions with no hub present!

Connectivity

• CPUZ-Wave S800
• Z-Wave repeater
• Z-Wave frequency bands868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz
• Maximum radio frequency power transmitted in frequency band(s)< 25mW
• Operational range (depending on local construction)Up to 40m indoors (131 ft.

Dimensions

• (H x W x L) 42 x 37 x 16 ±0.5 mm
